Product Overview

Horticultural Lamp

HLTOP03 delivers in full spectrums including royal blue ( 5% ), deep red ( 25% )

Model:HLT0P010 Series(120W) Light Source:LED Power:120W Installation:Suspended IP rating:IP65
Contact: [email protected]

Product features

· 120w 4ft led linear fixture with high ppe efficiency.

· Samsung full spectrum white light, 660nm plant red light, and 730nm infrared for

enhanced yield.

· Premium dimmable ul-listed driver supporting wide input voltage of ac120-277v.

· Suitable for downward lighting configurations.

· End-to-end cable connectivity supporting up to 20 fixtures.

· Uniform light output distribution .

· 0-10v dimming capability via rj11 connection.

· IP65 rated for water and dust resistance.

· Easy and quick installation.

· 5-year manufacturer's warranty.


Installation

· Disconnect the power to the luminaire.

· Take out and locate two stands. Install the clips at top of both stands.

· Put the fixture on the two stands and use the clips to hold the fixture,

the space is suggested as 80cm between two stands.

· Connect the Daisy chain cord on both sides the fixtures, The max

series connection quantities can be up to 20 pcs fixtures as a group

at 277v.

· Connect the power cable with the first luminaire in the group if the

RJ11 cables are connected within the group.

· An external dimmer is optional to control or dim the luminaire in the

group


Application

· Indoor grow for hemp,cannabis,marijuana;hobby&commercial grow.

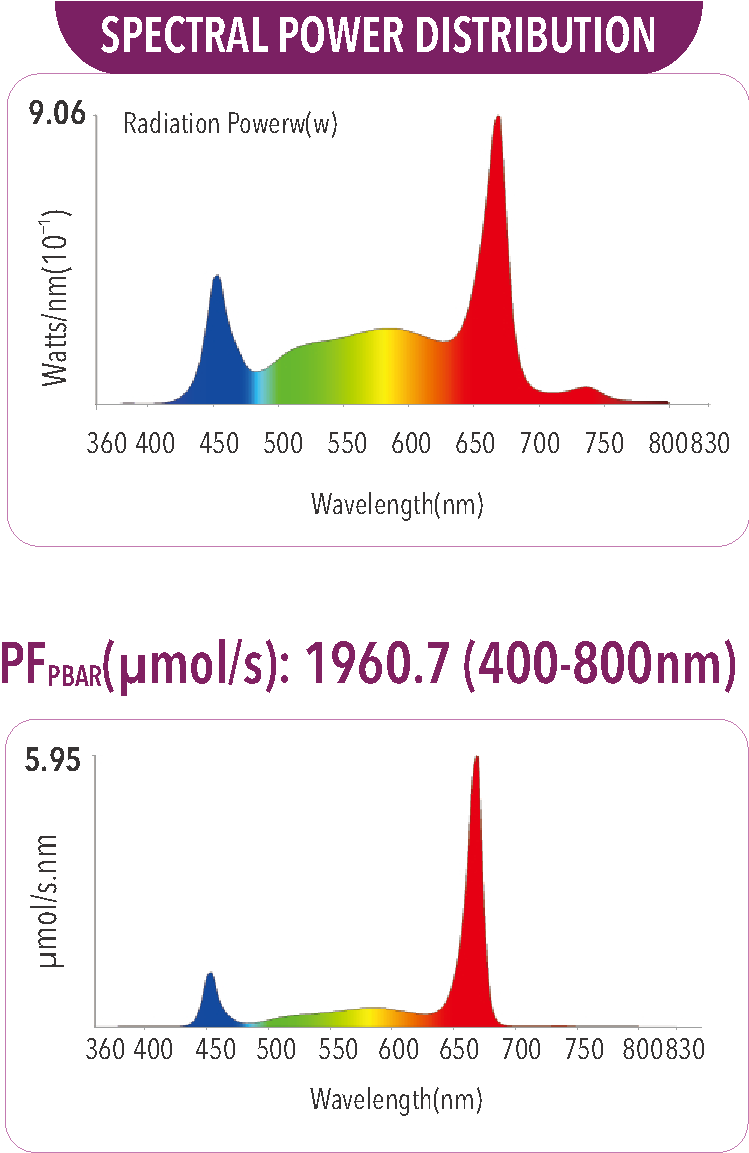

Spectral Power Distribution


资源 14.png


Lamp information


资源 15.png

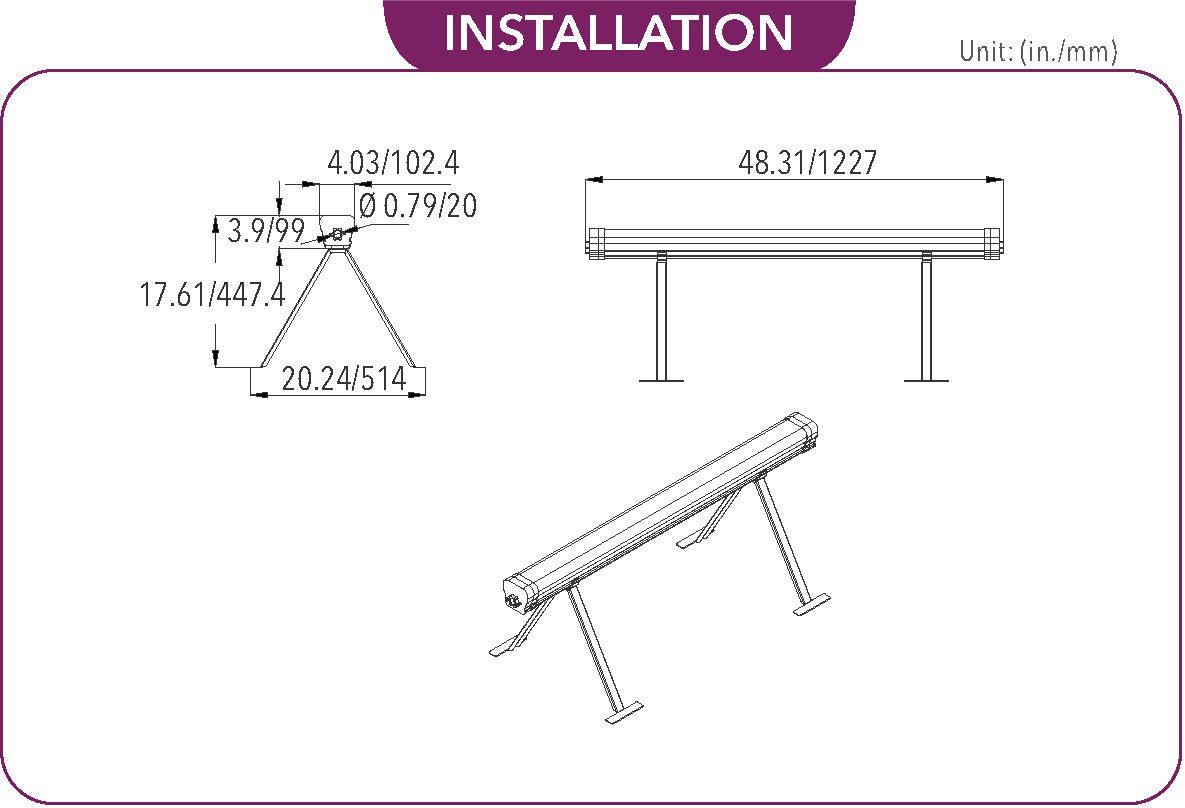

Dimensional drawing


资源 16.png


Lamp information


资源 17.png

资源 18.png


资源 19.png
