HomePage > Products > Grow LightingHLT0P06 Series(720W)
Back
Product Overview

Horticultural Lamp

HLTOP03 delivers in full spectrums including royal blue ( 5% ), deep red ( 25% )

Model:HLT0P06 Series(720W) Light Source:LED Power:720W Installation:Suspended IP rating:IP65
Contact: [email protected]

Product features

· Samsung full spectrum LED chip, white light+660nm red light+IR, for hemp grow.

· High quality CE or UL certified built-in driver with dimming knob and RJ11 port.

· Foldable design for small package to save shipping cost.

· Extruded aluminum design for good heat sink to extend the lifespan of luminaire.

· Easy to install and operate, instant start, no flickering, no humming, long service

life, increase hemp production.

· CE and Rohs certified.


Installation

· Disconnect the power to the luminaire.

· The installation is as easy as hanging the supplied V hooks on a bar (not included).

· Any adjustable ratchet hanger, chain, etc can be connected on the V hooks.

· Hang the fixture from a strong cord or chain from both ends. Note that each hook should be able to withstand a rated weight of at least 50-lbs. Please

hang the hook provided by the drive on the fixing rod, and then connect the wiring between the lamp and the drive.

· Route the electrical cord up and away from the light to another hook (not provided) and down the wall to the drive.

· It is recommended to adjust the distance between the luminaire and crops in different grow stages for maximum yield.Steel suspension wires with snap

hooks and wire clips are optional for connection.


Application

· Indoorhemp / cannabis / marijuana grow.

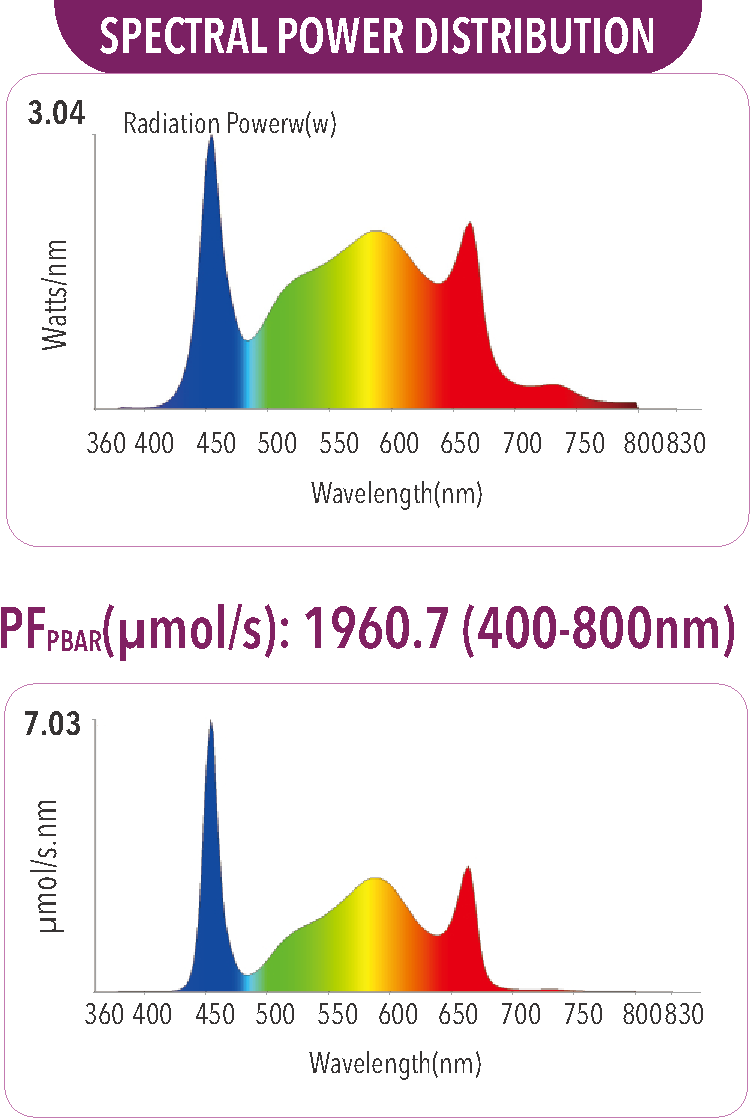

Spectral Power Distribution


资源 1.png

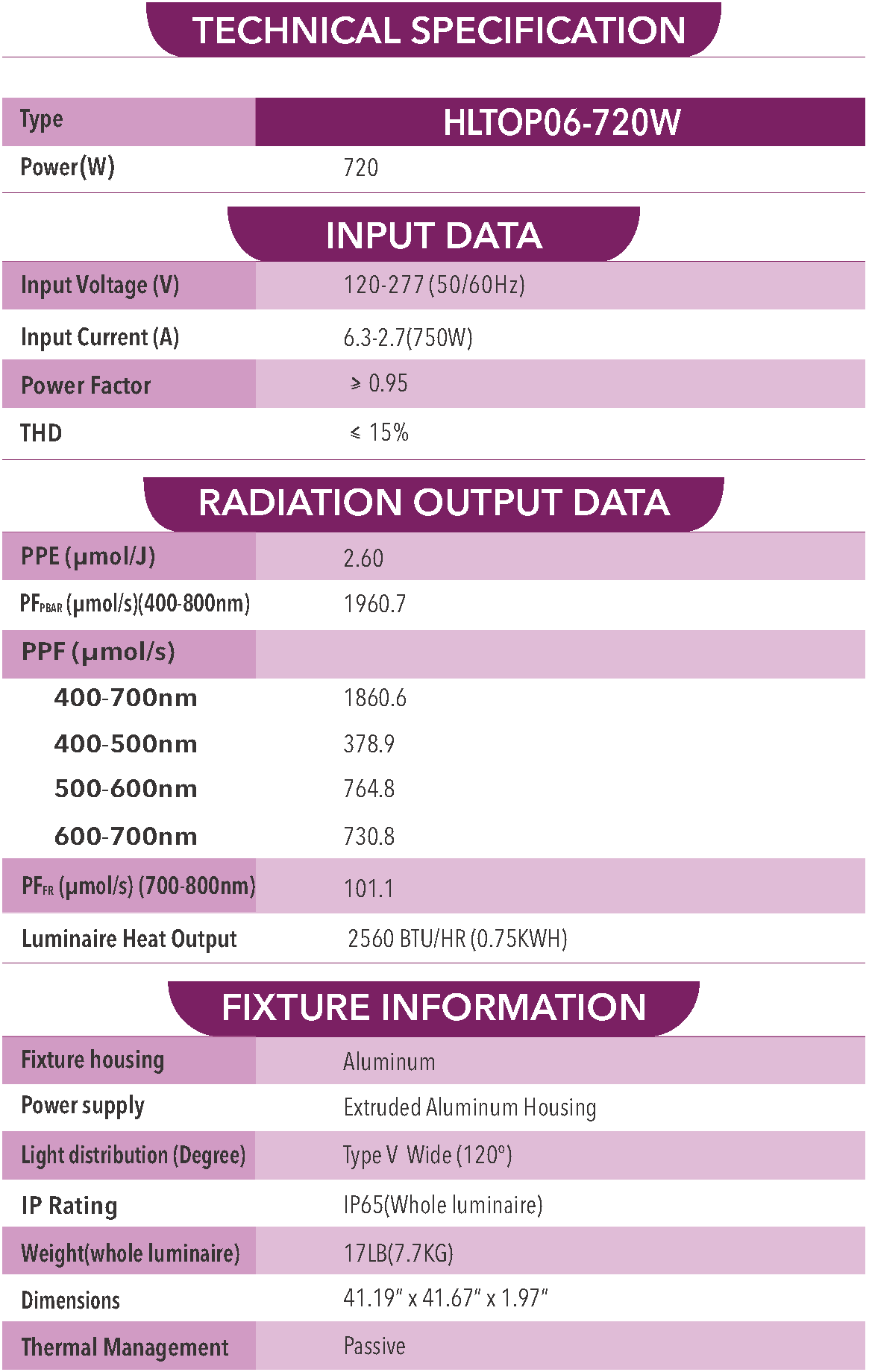

Lamp information


资源 2.png

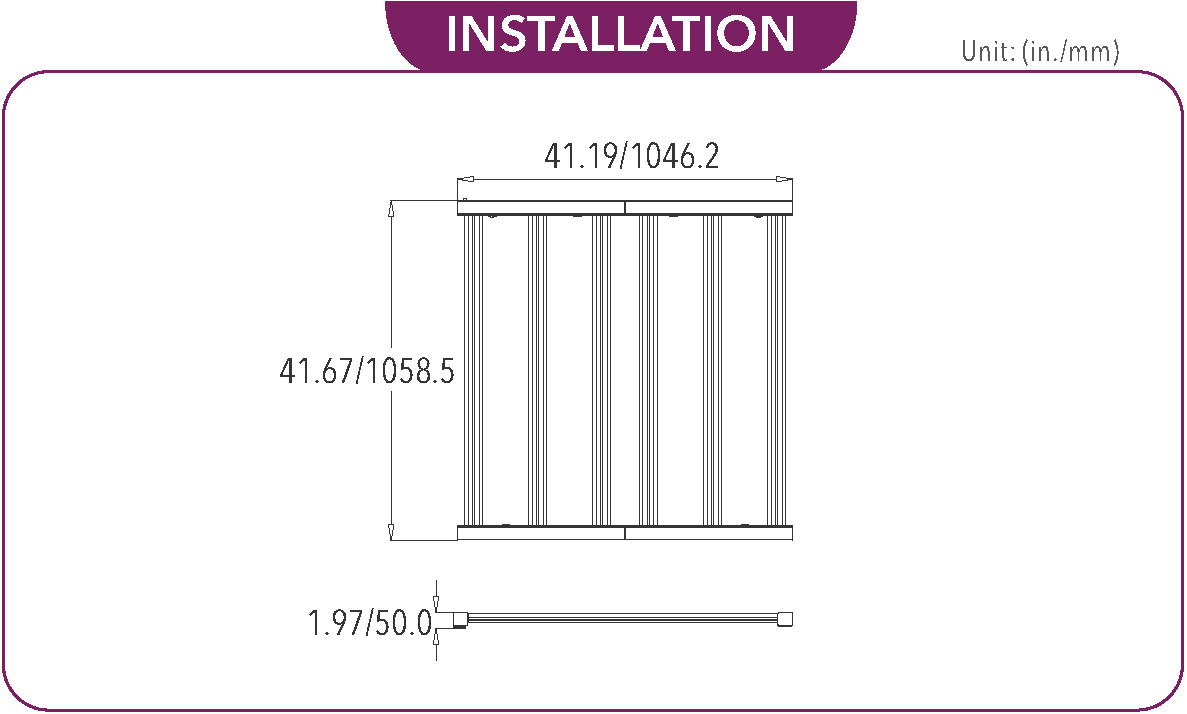

Dimensional drawing


资源 3.png


Lamp information


资源 4.png

资源 5.png


资源 7.png
